NQGX30-500大输液灌装 联动线

产品详情Product Details

借款用途与百度百科/Purpose and introduction

该工作线由理瓶机(上瓶台)、超声心动图波洗瓶机,包装(旋盖)加塞机,轧盖机,标贴纸机等仪器分为On the production line by unscramble bottle machine (bottle), ultrasonic bottle washing machine, filling (screw cap) stoppering machine, rolling machine, labeling machine and other equipment



共同点/characteristic:

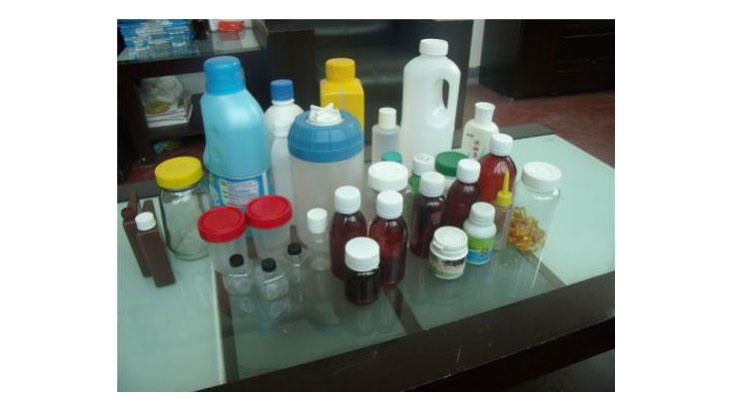

该加工加工线适当于 30-500ml系厂品的灌装线加塞封口处,更換部分规格为注塑模具后,既适当于塑料管瓶,也适当于波璃瓶。更具顺应区域密切,调节便捷的特征 。整线加工加工效率;适矿泉水瓶尺寸大小图案,小球粘稠度而定。The product line is suitable for 30-500 ml series products filling barging sealing, change some specifications after the mould, is suitable for plastic bottle, also suitable for glass bottle. Have to adapt to a wide range, convenient adjustment. The whole line production capacity; Optimum size bottle shapes, object on the viscosity.


技术工艺基本参数/technical parameters:

生产能力production capacity(pcs/h)

80-120(8针灌装、6头轧盖
  40-60(4针灌装、单头轧盖)

洗瓶是否干纯净度Washing bottle cleanliness(%)

> 99

装量确定误差The load error(%)

0-2

上塞达标率率Plug on the percent of pass(%)

> 98

轧盖通过率Rolling cover percent of pass(%)

> 98

功率power(kw)

11

外形尺寸boundary dimension(LxWxH)   (mm)

9.740 × 1,470 × 1,785
