种类与简价/ Brief Introduction：

本出产线由自动定位式理瓶机、滚筒机式洗瓶机、消毒剂太干机、眼药液分装旋盖机、立柱式标贴纸空气能热泵机组成，可完毕理瓶、水、气的清洁、烘烤及老化消毒剂、分装、加塞、旋盖、标贴纸等加工过程，包括用到眼药液非常他小的用药量水溶液的联线出产，也可手机单机独有适用。可以符合要GMP要。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

特征 /Characteristic：

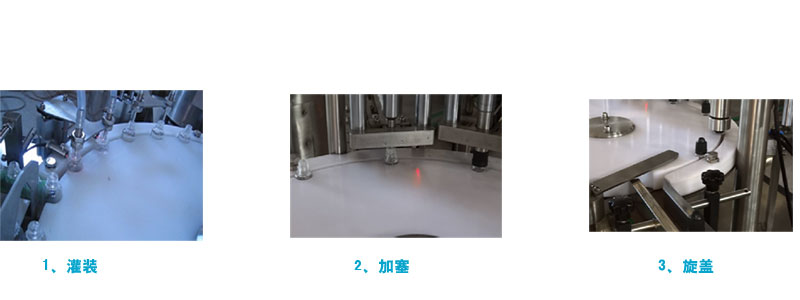

该机组的设计机构合理有效，运营稳定性高、罐装准确更高，具国内的携手同制造行业现进质量。已经具备GMP标准。     眼药剂罐装旋盖机早就是我子公司的最后代车辆，组队页面把控好，蠕动消化泵罐装，由真空系统吸机器手替换标准气缸更快的打塞，维持了相对稳定量分析和符合标准率。进行恒力矩旋盖，拥有无瓶不罐装、无塞不上盖，无瓶无塞可定时停止设备运转的模块。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

技术工艺主要参数/technical parameters：

使用型号规格/Bottle size	10-20ml
产生技能/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
使用水进行压/ Hydraulic Pressure Mpa	0.3Mpa
污发电量 /water consumption	0.5 m3/h
洁净间减少大气负压 /Clean compressed air pressure	0.6-0.8Mpa
净化后的收缩室内空气使用/Clean compressed air consumption	300 L/min
24v电源/Voltage	380V/50Hz
工作功率/Power	5.5 kw
制造线总长/Dimension	11000*1500*1900mm
