的主要用途与筒介/Brief introduction：

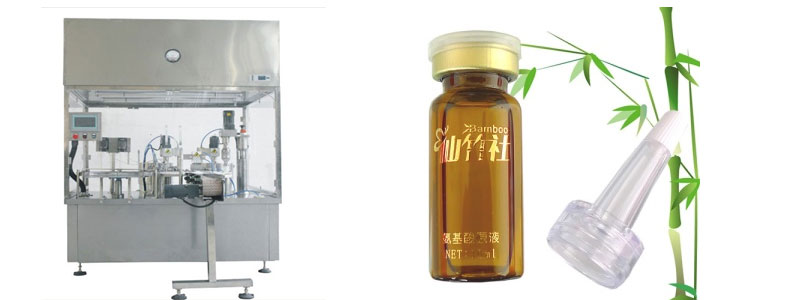

远程服务器是在获批和吸取国际品质安全的技术的基本上，应该由我平台独立技术创新的一类技术对西林瓶的包装、上塞、旋（轧）盖机。远程服务器所采用泰国全進口高精密度较全封式轴承精密度等级工作台面器，精密度较高，运作安全，在操作生命长。该精密度等级器结构设计简易，长期性的在操作不要处理。滤油机核心可主要用作一些小残留量固态的罐装、压塞及旋（轧）盖，如植物精油、针剂剂等。大面积主要用作肉制品、纸业、纸业该行业及研发邻域。该设施既可单人加工，又可与洗瓶机、变干机等设施组合而成协作加工线。完全性满足政府GMP特殊要。滤油机可按照其朋友特殊要更新电力工程配备。NFGX-5/50 Automatic Vial Filling&rotation (rolling) machine is built in the absorption of foreign advanced tecnology, based on independently developed by the company ,It is the domestic leading level.This machine is suitable for a variety of small doses of liquid filling&capping such as oil, injection . Widely used in food, pharmaceutical, chemical industries and scientific research.  Single machine can produce, but also with washing machine, dryer and other equipment linked production line. Full compliance with the GMP requirements. The machine according to customer requirements to upgrade the electrical configuration

基本特征/Characteristic:：

◆人机对战对话框调节、使用形象直观便捷、PLC设定，装量*。Human-machine interface settings, an easy and intuitive, PLC control, the amount of precision equipment. ◆变频柜掌握、产生效率不同缓解、自动式计算。Frequency control, the production rate be adjusted automatically count  ◆主动宕机能力，无瓶不装灌。No bottle no filling.◆园盘定位手机式装罐，平衡可靠性。Disc positioning filling, stable and reliable.◆高可靠性强，精密度气缸精度等级计把控，wifi定位*。High-precision cam meter control, precise positioning.◆选择SUS304及316L304不锈钢创造，齐全适用GMP标准。SUS304 and 316L stainless steel, full compliance with GMP requirements.

技巧规格/ technical parameters：

装量的范围Filling volume	5-50ml
装量偏差loading error	≤ ±1%
旋（轧）盖合格品率 Rotation (rolling) Cover pass rate:	≥99%
生产方式业务能力Production capacity	30-60瓶/分 钟  中速 70-100瓶/分 钟   &n🌟bsp; 公👍路 30-60 bo🌟ttles / min  70-100 bottles / minute (high 𓃲speed)
压塞率Tamponade rate	≥99%
24v电源 Power	380V/50Hz
额定功率Power	2.0 kw
工具重量Net weight	600 kg
外型尺寸 Dimension	2000*1000*1500mm
