作用与详细资料/Brief Introduction：

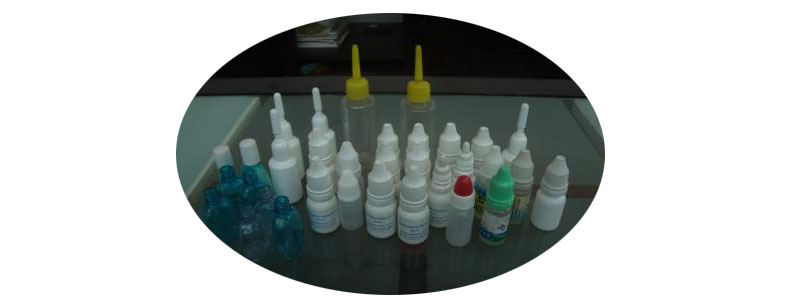

该设备中用于2-30ML各式板材的长方形扁形泡沫塑料或夹丝玻璃酒瓶的眼蓝药水装灌、自动化烟油等小使用量装灌.该设备由高高精度度轴承轴量程组织作为量程等分盘分析上塞上盖;促进度轴承轴齿轮变速箱作为旋盖头的升降调节;恒发动机功率旋盖;颤动泵计量检验校准装灌;接触屏运行.无瓶不装灌,不带内塞,外盖.具分析高精度,齿轮变速箱趋于稳定,保障玻璃瓶盖,计量检验校准准.运行简单等优点有哪些。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

亮点/Characteristic：

◆微线上选用、装量精准度、操作流程便捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机设备钻速可做出有级调频可控硅调压。the mainframe running speed is stepless frequency conversion.◆生产销售量手动一定量保持。the product quantity can be controlled. ◆不同内部故障显示特点(如低大气压。无包装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆一键暂停服务功能键，对某一钢轨出来反复无灌装设备、无内塞症状可一键暂停服务。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

系统运作/Main Technical Parameters：

符合尺寸Filling Volume	2-30ml
生产加工作用Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
包装导致精度Filling Precision	≤±1%
电源模块 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自动的上塞率Stoppering rate	≥99%
氧气源Air Supply	1.3 m3/h    0.4-0.8Mpa
耗油率 Power	2.0 kw
丝机总重量Weight	550 kg
样貌尺寸图Dimension	1800*1000*1500mm
