种类与介绍：/Purpose and introduction

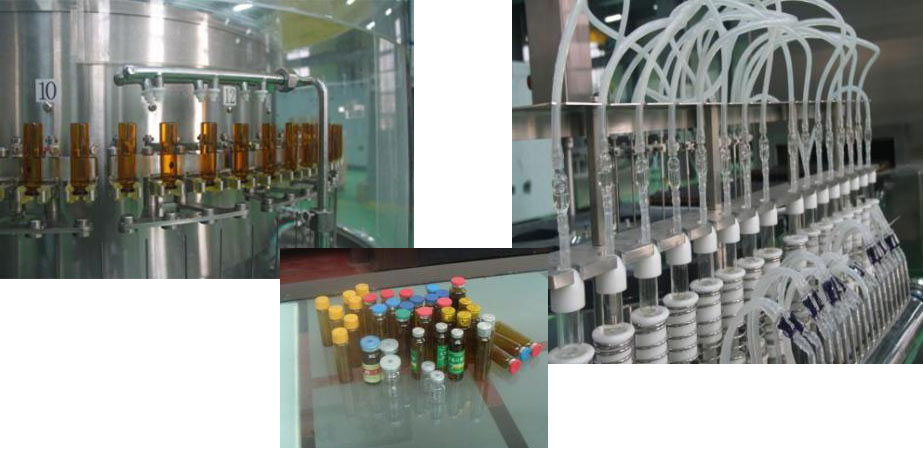

服食液洗烘灌轧对接线由立试高周波波洗瓶机、隧道工程式热气 配置高压蒸汽灭菌方法晒干箱、服食液装罐轧盖机等组合，满足于 5-30ml 等有所不同规 格服食液瓶的制造。可完全对非处方药制造中安瓿瓶淋水、高周波波擦拭、冲水、充 气、晒干高压蒸汽灭菌方法、冷却塔、装罐、轧盖等工序步聚的对接运营。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

性能:/characteristic

◆洗瓶机进行机诫手夹瓶，适宜多类规格尺寸的小瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶用到气水喷针回转侦测添加方案，清洁效率好，节省能源开发。并均有针架防震动系统，上升喷针添加小瓶的精准度，降低断针毛细现象再次发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整体水雾线路、喷针齐全人格独立分离，避免出现了是交叉感染，按照GMP标准让；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺丝杆前改加缓存数据块，有保護螺丝杆，以减少碎瓶功用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶分为整体上入口同部带，对接拨块运输口服方式液，电脑运行固定稳定可靠In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘烤箱通过红外线调温管，不锈钢材质的调温管加厚调温气温更加均匀性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装线轧盖机先选配淘瓷泵、装饰管泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆分装无瓶止灌，无瓶不轧盖作用。Pieces filling without bottle filling, no bottle no rolling function.◆整线利用PLC总操作、伺服器、手触屏操作技术设备，加载相对稳定稳定靠得住。手触屏可表明各单机版的加载情形下，各操作点的压力、压力、风压差、温度表等表明，各按钮开关情形下和出现问题的表明，出现问题的自我发展疾病诊断和出现问题的概述及检测做法。使一部分产出进程提高一键化操作，联线含有三机自动化平横裝置，确保产出动态平衡稳定靠得住。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.不同朋友的所需，还可供标配：According to the needs of customers, but also available for selection:◆PLC、斯耐德、西门子、台达等产品操作系統；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压、水的温度及超声检查波承载力、埃尘微粒、空气流速优酷云检测工具、警告、纪录、复印控制系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌操作屏蔽器设备。Mixer ORABS, CRABS, aseptic isolator system.

高技术规格：technical parameters

可用于规格尺寸Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装设备精确Filling accuracy(%)	≤ ± 2.5
装罐头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合格证书率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
